Axium KPC 2.8-N Touch Screen

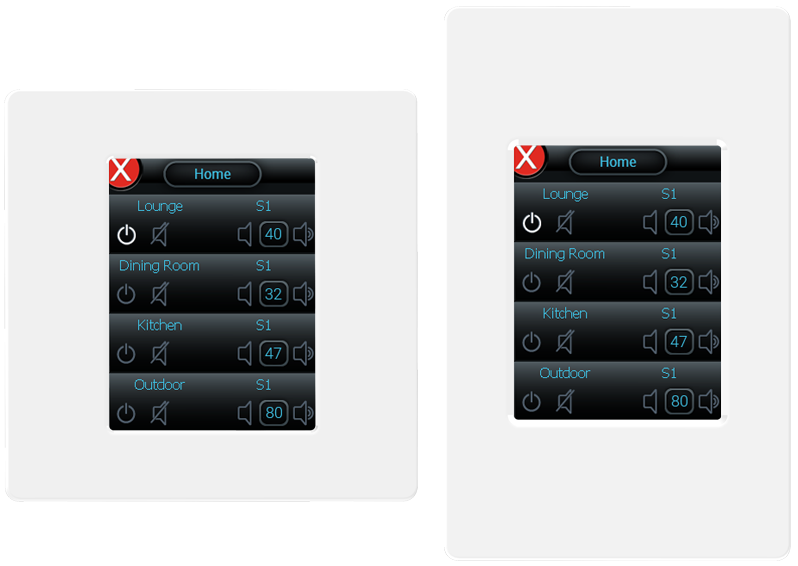

The Axium KPC2.8-N keypad is a programmable 2.8” colour LCD Touch screen. Being capable of learning

and sending IR commands the KPC2.8-N can be used as a standalone keypad to control virtually any IR

controlled device.


This new network version can be connected via a PoE network switch or via the RJ45 port connected to an

amplifier keypad port. When used with an Axium Multi-Zone Amplifier full 2-way feedback of source selection,

power, mute & volume status is provided. Full 2-way RS232 an IP control is available when connected to an

Axium AX-R4D/R1D RS232 router and the prebuilt Axium applets. Setup by the Axium Design Portal software, the KPC2.8-N includes a host of features to simplify programming and enhance amplifier and source equipment control.


Specifications & Features

  • 2.8” LCD touch panel
    • Contrast ratio = 500:1
    • Viewing angle =160° (H & V)
    • 240 (RGB) x 320 Dot 64K Colours.
  • Operating voltage: 12VDC ± 3V.
  • Current draw typically 60mA – 100mA.
  • Memory: 8Mbytes Flash for GUI and IR commands.
  • IR learning of both modulated and pulse IR codes. Modulation frequencies up to 500 kHz.
  • Large IR database supplied. IR codes using the ‘HEX’ code format may be imported into Axium Design Portal.
  • Portrait or Landscape display orientations.
  • Australian or European size and mounting options
  • Macros supporting control flow instructions.
  • User defined button sounds: wav file
  • Range of Skins available for graphical user interface (GUI)
  • Single touch Control types: Animated Buttons, Buttons with feedback, Sliders, Numeric Readouts and Applets providing control & Metadata display.
  • Support for transparent and multilayer images.
  • Background images using PNG, BMP, JPG or GIF formats may be imported and scaled.
  • Anti-aliased Text with user defined font, colour and Unicode support.
  • Polygon button outlines provide very close button spacing.
  • 2 Way RS232, Ethernet and IR routing when used with the Axium AX-R4D/R1D and supplied Applets.
  • Wiring:
    • Up to 95m CAT5E ‘Home Run’ RJ45 terminated cable when using the legacy connection.
    • Up to 95m CAT5E, 568A terminated using the IP connection
  • Mounting for European or Australasian / USA style flush box.
  • White & Black cover plates supplied for both European and Australasian / USA styles.
  • Current Applets:
    • Alarm Systems:
      • Arrowhead
      • ELK
    • Autonomic Media Center
    • Axium AX-800 and AX-400 zone feedback
    • Axium Media Player
    • Axium Alarm configuration
    • Clock
    • Integra
      • CD/DVD/BD Player
      • iPod Dock*
      • Receiver incl Z1, 2, 3, & 4
    • Lighting
      • Bticino
      • C-Bus
      • ​Fibaro
      • ​Lutron
      • Luxom
      • Vantage
    • NEC Projectors
    • Request DMS
    • Schedule editor
    • Slideshow Screen Saver
    • Sonance iPort iPod Dock
    • T118RDS Tuner
    • Vantage DMM Music Server
    • Variables Display


Download AX-KPC-LCD-N Cut Sheet


Axium KPD LCD Display Keypad


Seriously clever, the KPD can be setup as an IR learning keypad to control almost any IR device available.

Then connect it to an Axium amplifier and get full 2 way feedback of power, source selection, mute and

volume levels.

The 1.5” colour screen provides plenty of viewing area for the customisable text and font size, even colour

and different languages can be used. For a touch of customisation, the background can be user defined

colours or images. Increase the AX-KPD functionality with the Axium AX-R4D/R1D, via the command matching

feature, and you have RS232 and IP control of 3rd party devices in an incredibly cost effective package. Put that

together with IR pass through, European (square) and International (rectangular) black and white cover plate

options that ship in the box, it can’t be touched for flexibility and performance

Specifications & Features

  • Mounting for European or Australasian / USA style flush box.
  • White & Black cover plates & lenses supplied for both European and Australasian / USA styles.
  • 1.5” colour TFT LCD
    • Contrast ratio = 200:1
    • Viewing angle = 45° (H & V)
    • 240 (RGB) x 320 Dot
    • 64K Colours
  • Operating voltage = 12VDC ± 3V
  • Current draw typically 100mA, Maximum = 140mA
  • Memory: 4Mbytes Flash for GUI and IR commands.
  • IR learning for Modulated IR codes.
  • Large IR database supplied, IR codes using the ‘HEX’ code format may be imported into Axium Design Portal.
  • Macros supporting control flow instructions.
  • Anti-aliased Text with user defined font, colour and Unicode support.
  • Background images may be imported and scaled. Supports BMP, JPG, PNG, and GIF formats.
  • Keypad firmware updated using Axium Design Portal
  • RS232 and IR routing when used with the Axium AX-R4D/R1D
  • Wiring: Up to 300m of CAT5E ‘Home run’ cable.
  • Connection: RJ45 plug.
  • Current Applets:
    • Axium AX-800DAV and AX-400DA zone feedback
    • Axium AX-800DAV Media Player
    • Axium Alarm configuration
    • Clock


Download AX-KPD Cut Sheet
